General Introduction:

EP rubber conveyor belt is widely used by the mining and processing industries for transporting bulk or lumpy materials such as quarrying, ore, coke, aggregates, crops, sand, clinker, chemicals, construction materials, etc.

The EP is short for Polyester fabric, which includes polyester toward longitudinal(warp) and polyamide for latitude(weft), EP fabric plies are sandwiched between rubber skim coats for adhesion and load support. Bottom and top cover compounds are added for maximum protection of the belt carcass. The EP conveyor belt consisting of  two to six EP fabric plies, EP rubber conveyor belt has the same merit as Nylon conveyor belt, in addition, EP fabric has the advantages of:

A.Lower longitudinal elongation.

B.Full resistance to mildew, moisture and rotting.

C.Good flexibility and trough ability.

D.Short take-up lengths.

E.Suitable for middle and long-distance transportation of higher load and speed.

EP fabric also has excellent compatibility with other rubbers, so it can be combined with any type of cover grade to make it a perfect match for almost any application. This allows EP conveyor belt to convey basically any type of product in any environment, from fine powders to large lumps, from dry to greasy materials, from extremely cold to very hot conditions.

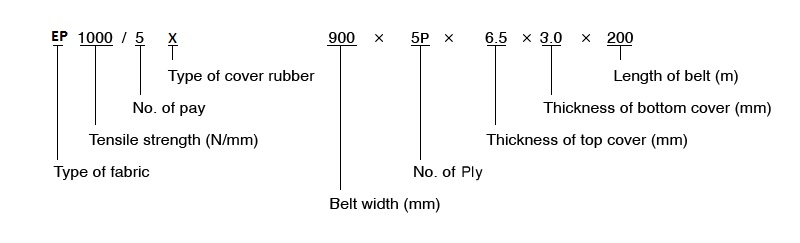

Key Symbols of EP Conveyor Belt:

EP Fabric Technical Specification:

Test Item

EP100

EP125

EP150

EP200

EP250

EP300

EP350

EP400

EP500

warp

weft

warp

weft

warp

weft

warp

weft

warp

weft

warp

weft

warp

weft

warp

weft

warp

weft

Breaking strength (N/cm)

≥1350

≥550

≥1600

≥650

≥1900

≥750

≥2350

≥785

≥3000

≥800

≥3400

≥800

≥3900

≥750

≥4500

≥900

≥5300

≥1050

Breaking elongation (%)

≥14.0

≤45.0

≥14.0

≤45.0

≥14.0

≤45.0

≥14.0

≤45.0

≥14.0

≤45.0

≥14.0

≤45.0

≥14.0

≤45.0

≥14.0

≤45.0

≥14.0

≤45.0

Elongation at 10% load (%)

≤1.5

≤1.5

≤1.5

≤1.5

≤1.5

≤1.5

≤1.5

≤2.0

≤2.0

Heat shrinkage (150℃, 30Min.)

≤5.0

≤1.0

≤5.0

≤1.0

≤5.0

≤1.0

≤5.0

≤1.0

≤6.0

≤1.0

≤6.0

≤1.0

≤6.0

≤1.0

≤6.0

≤1.0

≤6.0

≤1.0

Adhesion (N/2.5cm)

≥196.0

≥196.0

≥196.0

≥196.0

≥196.0

≥196.0

≥196.0

≥196.0

≥196.0

Weight (G/m²)

370±30

430±30

520±30

610±40

780±40

860±40

980±40

1180±50

1320±50

Thickness (mm)

0.53±0.06

0.62±0.06

0.70 ± 0.06

0.85±0.09

1.00±0.10

1.15±0.10

1.20±0.10

1.50±0.12

1.70±0.14

JIENASI EP rubber conveyor belt products have five types according to coating difference: Anti-split type, Anti-abrasion type, common type,acid-alkali resistant type, and heat-resistant conveyor belt type.

JIENASI cover rubber grade for general purpose:

DIN22102 Standard:

Standard			DIN-W	DIN-X	DIN-Y	DIN-Z
Tensile test	Before Aging	Tensile Strength (Mpa)	>18	>25	>20	>15
		Elongation(%)	>400	>450	>400	>350
	After   Aging	Change rate of TS(%)	±25	±25	±25	±25
		Change rate of EL(%)	±25	±25	±25	±25
Abrasion test(mm³）			<90	<120	<150	<250

AS-RMA Standard

Standard			AS-N	AS-M	AS-A	RMA-1	RMA-2
Tensile test	Before Aging	Tensile Strength (Mpa)	>17	>24	>17	>18	>14
		Elongation(%)	>400	>450	>400	>450	>400
	After Aging	Change rate of TS(%)	±20	±20	±20	±25	±25
		Change rate of EL(%)	±20	±20	±20	±25	±25
Abrasion test(mm³）			<200	<125	<70	<125	<200

Muti-ply EP Fabric Grade (Tensile Strength kg/cm, PIW):

Fabric/Ply	3P		4P		5P		6P
	kg/cm	PIW	kg/cm	PIW	kg/cm	PIW	kg/cm	PIW
EP-100	300	1680	400	2240	500	2800	600	3360
EP-125	375	2100	500	2800	625	3500	750	4200
EP-150	450	2520	600	3360	750	4200	900	5040
EP-200	600	3360	800	4480	1000	5600	1200	6720
EP-250	750	4200	1000	5600	1250	7000	1500	8400
EP-300	900	5040	1200	6720	1500	8400	1800	10080
EP-350	1050	5880	1400	7840	1750	9800	2100	11760

* PIW=Pounds Per Inch Of Belt Width

If you are from the U.S or Europe, you may need to convert between PIW with N/mm, please click here to see how to convert it.
