Conveyor components

  • Conveyor Belt PU Scraper

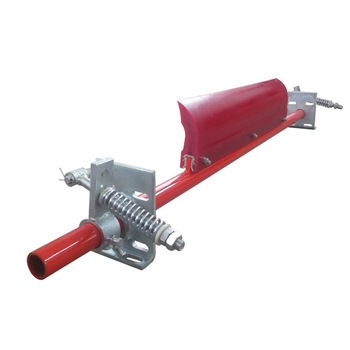

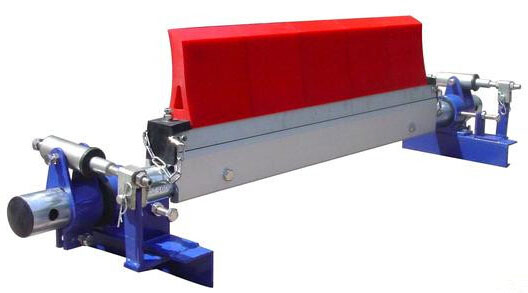

Conveyor Belt PU Scraper

Conveyor Belt PU Scraper

  • Spec:T 2mm*W 8mm* L100m
  • Hardness: 90-91 HRA
  • Density: 14.9-15.0 g/cm³
  • Wear loss: < 800mm³
  • Product description:
  • INQUIRY


Polyurethane has good abrasion resistance than rubber and plastic, and with higher load bearing
capacity. and with excellent wear properties and elastic memory. Polyurethane have replaced
metals in sleeve bearings, wear plates,sprockets, rollers and various other parts, with benefits such
as weight reduction, noise abatement and wear improvements being realized.

Specification:

1.  Alloyed blade

Spec: 2mm*8mm*100mm (thickness*width*length);
Hardness: 90-91 HRA;
Density: 14.9-15.0 g/cm³ ;
Wear loss: < 800mm³

2.  PU Scraper

Tensile strength: 18KgN/cm² ;
Elongation: Over 40%;
Shore Hardness: 75-80 shore A
Application:
Apply to belt width 500mm-2000mm;
Apply to machinery buckles and vulcanization joints;

Apply to relatively poor working conditions.



Conveyor belt cleaner specification:

Type Belt Widt /mm L1/ mm L2 / mm L3 / mm Weight / kg
JS-SC65 650 600 According toonsite installation 1600 33
JS-SC80 800 800 1800 37
JS-SC100 1000 1000 2000 40
JS-SC120 1200 1200 2200 43
JS-SC140 1400 1400 2400 47
JS-SC160 1600 1600 2600 50
JS-SC180 1800 1800 2800 53
JS-SC200 2000 2000 3000 57
