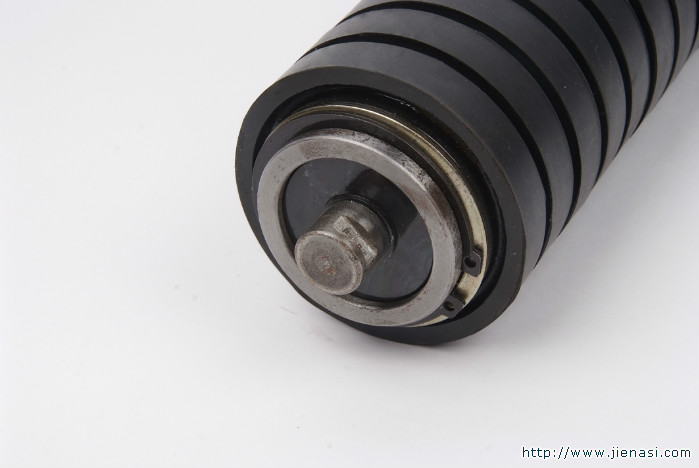

Impact Idler

  • Impact Conveyor Idler
Impact Conveyor Idler

Impact Conveyor Idler

  • Free maintenance roller
  • Dia 60-219mm,length 190-2400mm
  • Standard: GB, ISO, CEMA, DIN, JIS, etc.
  • Certificate: CE, ISO9001, BV, SGS
  • Product description:

Free maintenance Idler ,used in mining,cement,steel,harbor,etc

Production capacity: as usual 5000 pieces/ week, but urgent order is acceptable


The life time: more than 20000 hours

Samples for testing are available.

The more relaxed payment terms

Detailed impact idler feature:

1.Roller idlers Dia 50mm-219mm, length 190-3400mm, which are used in the steel industry, harbor, coal industry, power industry, cement industry, etc

2.Tube: Q235

3.Shaft: 45# STEEL

5.Bearing: Single & Double Row Deep Groove Ball Bearing 2RZ&2Z with C3 clearance.

6.Seals: Grease retaining inner seal with Multi-stage Labyrinth and Retention Cap with Outboard Rubbing Flinger Seal.

7. Lubrication: Grease is Lithium soap type grease with Rust Inhibitors.

8. Welding: Mixed gas shielded arc welding end

9. Painting: ordinary painting, hot galvanized painting, electric static spraying painting, baked painting

Besides we can manufacture the rollers and idlers according to the buyers’ requirements.
