Conveyor Idler

  • Conveyor Idler
Conveyor Idler

Conveyor Idler

  • Idler Tube: Q235 Steel, Shaft: 45# Steel
  • Standard: CEMA, DIN, JIS, AS, etc..
  • Certificate: ISO9001, SGS
  • Product description: Discover our high-quality conveyor idlers designed for efficient material handling, at Jienasi company, we offer a wide range of durable and reliable conveyor idlers that ensure smooth and reliable tr

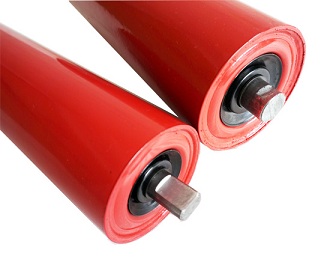

Belt Conveyor idler / Carrying idler

Conveyor idlers are an essential component of heavy-duty material handling systems in industries such as coal and mining, power, and cement. The conveyor idlers are designed to support and guide the conveyor belt along its path, ensuring smooth and efficient operation.

Detailed conveyor idler feature:

  1. Conveyor idlers: Available in diameters ranging from 50 mm to 219 mm (2 1/2" to 8 5/8"), with lengths from 190 mm to 3400 mm, to suit a wide range of conveyor systems.

  2. Idler Tube: Made from Q235 (equivalent to SS400/JIS G3101/EN10025/ASTM A36 ) steel for durability and strength.

  3. Idler Shaft: Constructed from 45# (equivalent to DIN:C45/EN:C45/JIS:S45C/ASTM A1045 )steel for reliable performance.

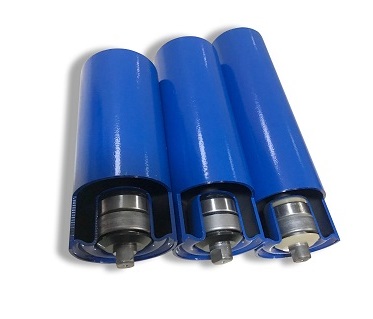

  4. Bearing: Equipped with single and double row deep groove ball bearings, with 2RZ and 2Z options available, and C3 clearance for enhanced efficiency and reduced friction.

  5. Seals system: Features a grease retaining inner seal with multi-stage labyrinth design, along with a retention cap, to prevent dust and debris from entering the bearing.

  6. Lubrication: Uses lithium soap type grease with rust inhibitors, to ensure smooth and reliable operation.

  7. Welding technology: Utilizes mixed gas shielded arc welding for strong and consistent welds.

  8. Painting technology: Offers a variety of painting options, including ordinary painting, hot galvanized painting, electric static spraying painting, and baked painting, to suit the specific needs of each application.

Overall, our conveyor idlers are designed and built to meet the rigorous demands of heavy-duty material handling systems, ensuring smooth and efficient operation and long-lasting performance.

conveyor idler

                          JIENASI Automatic Conveyor Idler Production Line--2024

conveyor idler

  1. Top 5 Belt Conveyor Idler Manufactures in China (2022)
  2. A Step-by-Step Guide to Selecting the Right Conveyor Idlers
  3. 10 basic factors to consider when choosing a suitable conveyor idler
  4. What are the reasons for the damage of the conveyor idler?
  5. 4 Proven Strategies to Enhance Conveyor Idler Efficiency
  6. Addressing Radial Runout, Flexibility, and Axial Movement
  7. Only one table can help you easily choose the right conveyor idler set

The new ultra-long-life conveyor idlers developed by JIENASI utilize advanced T4003CR stainless steel in conjunction with SKF bearings, achieving a standard lifespan of up to 60,000 hours, with the potential to reach a maximum of 100,000 hours. What makes this stainless steel so wear-resistant, and in which industries can conveyor idlers using T4003CR be applied?

T4003CR, equivalent to the European standard 1.4003, is a practical ferritic stainless steel often used as a substitute for low carbon steel. T4003CR possesses a range of advantages typical of ferritic stainless steels, including high strength, excellent corrosion resistance, and outstanding wear resistance. It is weldable, formable, durable, and enables lower maintenance requirements. Its characteristics are as follows:

conveyor idler

T4003CR Chemical Composition

















T4003CR Mechanical Properties



Tensile Strength

≥520 MPa

Yield Strength

≥205 MPa



conveyor idler

Corrosion Resistance

T4003CR stainless steel exhibits excellent corrosion resistance and can be used in various corrosive environments. Its corrosion resistance is particularly outstanding in environments containing chloride ions and sulfate ions. In reducing acids and oxidative acids environments, it also performs well. conveyor idlers using T4003CR can be applied in industries such as fertilizer, petrochemical, food, pharmaceutical, papermaking, sewage treatment, and metal processing.

Processing Performance

T4003CR stainless steel possesses good processing characteristics, adapting to various processing requirements. It has good plasticity and weldability, allowing for deep drawing, bending, and edge rolling operations. Additionally, it demonstrates good fatigue resistance and stress corrosion resistance, making it suitable for use in environments subjected to repetitive loads. Therefore, conveyor idlers using T4003CR exhibit excellent wear and corrosion resistance.

In summary, T4003CR stainless steel is a high-strength, corrosion-resistant, and easily processable material, with its excellent performance finding widespread applications in various fields. However, it is essential to consider the specific usage environment when selecting materials, as each material has its limitations.

conveyor idler
