Only one table can help you easily choose the right conveyor idler set (belt width from500~2400mm)

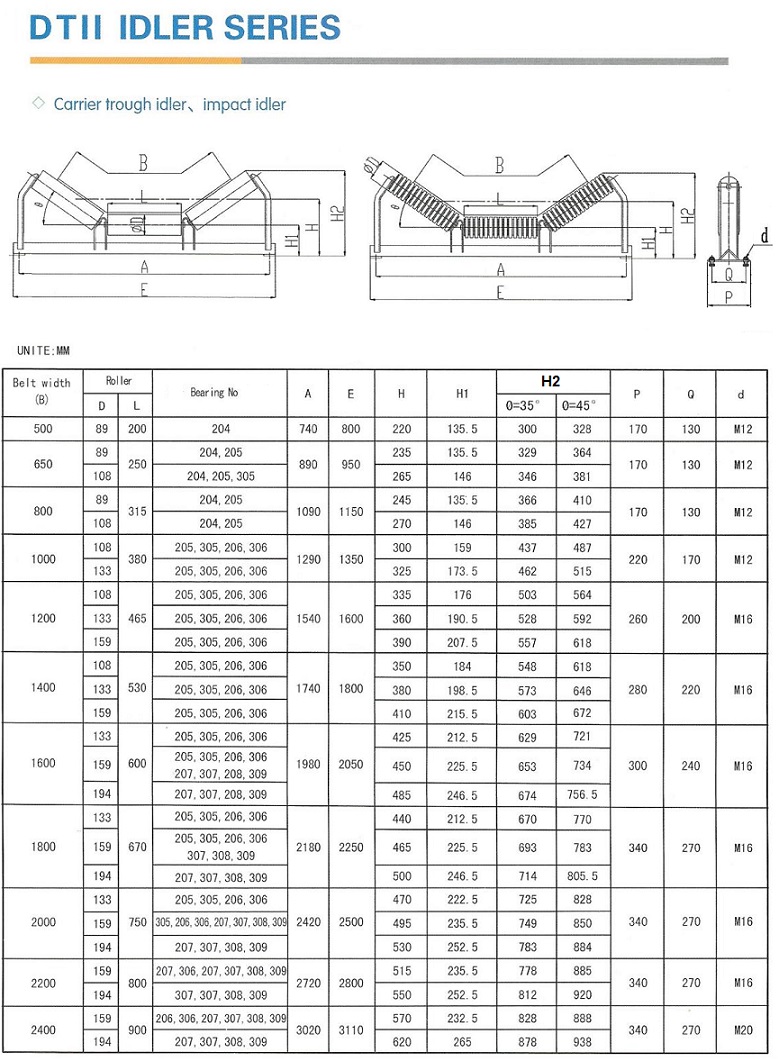

Are you confused about choosing the type and length of conveyor idlers? The following drawings will help you easily choose the size of the conveyor idler and bracket, including the idler diameter, length, length of the bracket, steel thickness, height and even weight, to help you easily choose the model of the convyeor idler set.

Of course, this is just a reference, and many other factors need to be taken into account when selecting the correct and suitable idlers and supports, such as the nature of the material, the length of the conveyor line, the speed of the conveyor, environmental factors, etc., if detailed selection steps are required , please refer to the next article:

Maximize Reliability: A Step-by-Step Guide to Selecting the Right Conveyor Idlers 2023

conveyor idler

conveyor idler

conveyor idler

conveyor idler

conveyor idler
