Conveyor belt

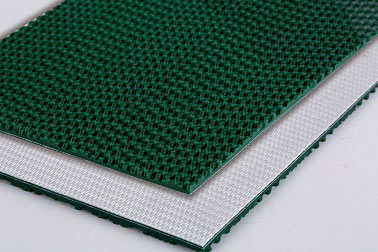

  • PU/PVC Diamond Conveyor Belts
PU/PVC Diamond Conveyor Belts

PU/PVC Diamond Conveyor Belts

  • Feature:Anti-static, softer
  • Color:Green, gray, black
  • Application:Food, tobacco, electronic

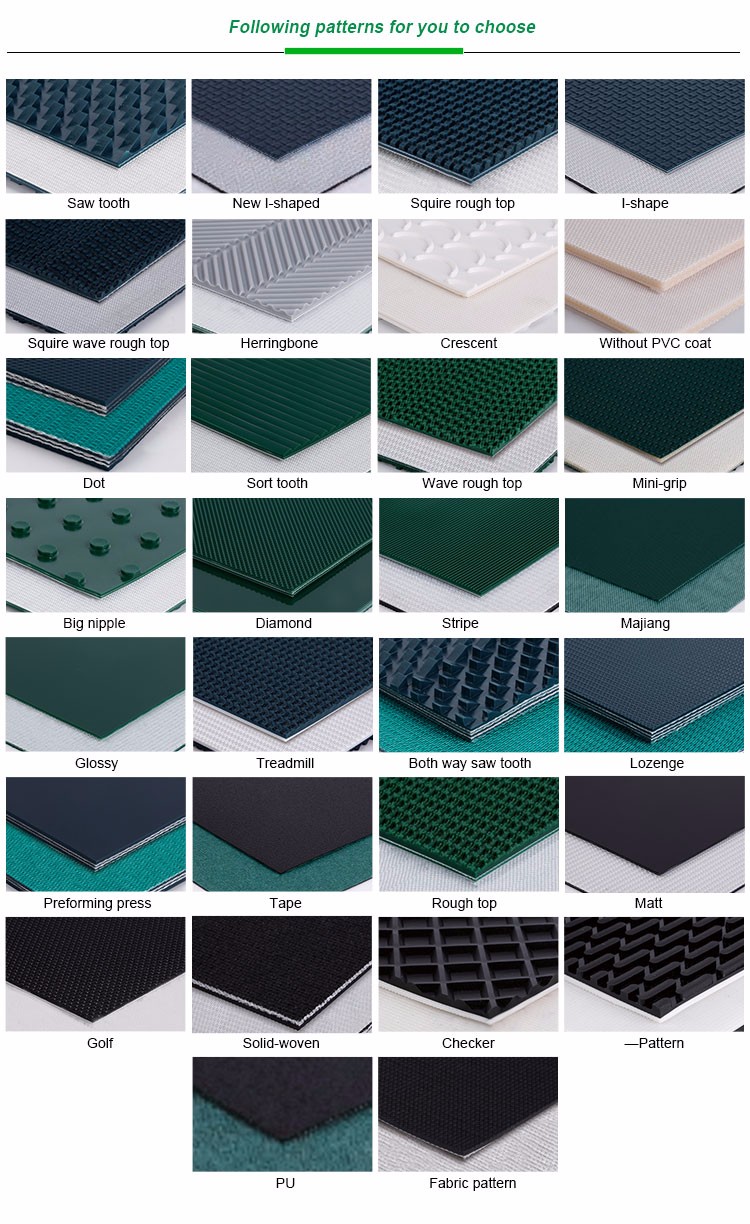

  • Pattern:Glossy, diamond, rough top
  • Product description:
  • INQUIRY
Belt code Top cover Bottom cover
Material Color Thickness Pattern Hardness °shA Color Pattern
11PUMJ1.05 PU green 0.5 fabric 90 / /
12PU0.8 PU white 0.2 smooth 90 / /
14PUDD0.75 PU black 0.5 tape 80 green cotton
22PU1.4 PU white 0.2 smooth 90 / /
22PU1.5/S PU white 0.5 smooth 90 / /
22PU2 PU white 0.5 smooth 90 / /
22PUS1.8 PU white 1.5 diamond 90 / /
22PUV1.5 PU sky blue 0.7 matt 90 / /
31PUCB3.5 PU green 3 mini-grip 90 / /
33PUS3.2 PU petrol green 1 diamond 90 / /
11C4 PVC green 3.5 rought top 75 / /
11P1 PVC green 0.4 smooth 75 / /
11QB5 PVC green 2.4 smooth 70 green smooth
11S1 PVC green 0.4 diamond 75 / /
12D1.8/MD PVC white 0.9 golf 75 / cotton
12P1 PVC white 0.4 smooth 65 / /
12P1.5/MD PVC white 0.7 smooth 75 / cotton
15MJ0.9 PVC grey 0.5 majiang 75 grey /
17WB1 PVC dark green 0.1 fabric patten 70 dark green fabric patten
210P2 PVC green 0.5 smooth 75 / /
21BC5 PVC green 3.5 wave rought top 60 / /


Belt code No. of plies Belt thickness mm Weight kg/m2 breakingload N/mm Working load at 1% elongation N/mm Minimum        pulley         diameter         mm Max roll width  mm Notes
11PUMJ1.05 1 1.05 1.2 >=50 >=4 10 2100
12PU0.8 1 0.8 1 >=100 >=8 10 3000
14PUDD0.75 1 0.75 0.9 >=50 >=4 10 1750
22PU1.4 2 1.4 1.7 >=100 >=8 20 300
22PU1.5/S 2 1.5 1.8 >=100 >=8 3 3000 Flexible fabric
22PU2 2 2 2.5 >=100 >=8 30 3000
22PUS1.8 2 1.8 1.8 >=100 >=8 60 3000
22PUV1.5 2 7.5 1.8 >=100 >=8 30 3000
31PUCB3.5 3 3.5 3.96 >=200 >=15 60 2000
33PUS3.2 3 3.2 3.72 >=150 >=12 60 3000
11C4 1 4 3.44 >=50 >=4 40 3000
11P1 1 1 1.1 >=50 >=4 20 3000
11QB5 1 5 5.2 >=80 >=6 / 3000 side wall
11S1 1 1 1.1 >=50 >=4 20 3000
12D1.8/MD 1 1.8 1.3 >=80 >=5 40 3000
12P1 1 1 1.1 >=50 >=4 20 3000
12P1.5/MD 1 1.5 1.3 >=80 >=5 40 3000
15MJ0.9 1 0.9 1.08 >=40 >=3 10 2000
17WB1 1 1 1.1 >=50 >=6 40 3000
210P2 2 2 4.56 >=100 >=8 40 2000
21BC5 2 5 5.25 >=100 >=8 60 2000
