Drive pulley

  • Drum Conveyor Pulley
Drum Conveyor Pulley

Drum Conveyor Pulley

  • Tube: Q235
  • Shaft: 45# STEEL
  • Bearing: Single & Double Row Deep Groove Ball Bearing 2RZ&2Z with C3 clearance
  • Standard: GB, ISO, CEMA, DIN, JIS
  • Product description:
  • INQUIRY

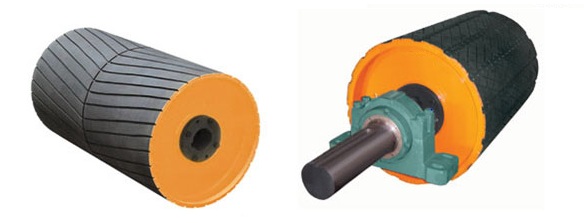

Heavy-duty conveyor pulleys are used in a variety of different bulk handling applications. They feature ridged single seam construction with continually welded end discs. These conveyor pulleys come crowned or flat face, with or without vulcanized rubber lagging. They are available with all styles of split tapered compression-style hubs and bushings.



JIENASI conveyor belt pulley adopts CO2 gas shielded welding and submerged arc welding, and ultrasonic and X-ray inspection for welding seams. The surface of the JIENASI conveyor pulley is vulcanized with a glyph and diamond rubber lining. Before transportation, the pulley needs to be statically balanced to minimize rotational resistance. The bearing seat of JIENASI conveyor belt pulley is split-type structure, which is easy to maintain. Driving wheel driving wheel is the main part of driving force.




Conveyor pulley's size depends on the detailed belt width, the structure can be according to our design or the customers' requirements, which are used in the steel industry, harbor, coal industry, power industry, cement industry, etc

Significant advantages:

• Thicker shell absorbs more stress.

• The large crown angle provides superior belt tracking capabilities.

• Truly concentric machining

• Maximum touching with the belt,

• Consistent belt content discharge,

• Min. deflection of shaft,

• Min. stress on the bearings

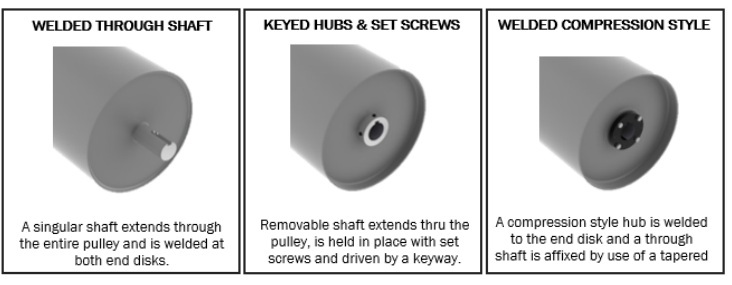

Shaft Selection

Shaft Material

. C1018 Carbon Steel

. C1045 Carbon Steel

. ANSI 4140 Alloy Steel

. 304 Stainless Steel

. 316 Stainless Steel

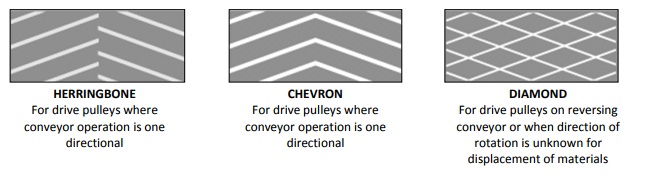

Rubber Lagging

Plain rubber lagging, chevron, herringbone and diamond grooves are all available in oil resistant, heat resistant, FRAS and food grade.




Comprising:

  • Drive Head & Tail Pulleys

  • Take-Up Pulleys,

  • Snub & Bend Pulleys

  • Self Cleaning Spiral Wing & Drum Pulleys

Available Pulley Designs:

  • Liveshaft or Deadshaft types.

  • Flat or crowned shell.

  • Taconite, labyrinth or speciality seals.

  • Oil or grease lubricated.

  • Self centering or low pressure lock element designs.
