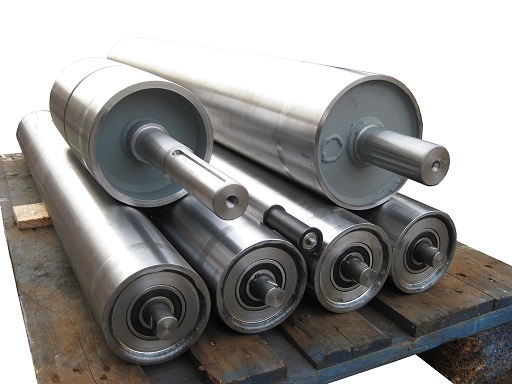

Stainless Conveyor Idler

  • SS304 Stainless Conveyor Idler
SS304 Stainless Conveyor Idler

SS304 Stainless Conveyor Idler

  • Diameter: 60-219mm
  • Tube: S/S304
  • Shaft: S/S304
  • Standard: GB, ISO, CEMA, DIN, JIS, etc.
  • Product description: It is mainly used under the iron remover of the belt conveyor of the underground or power plant to prevent the idler from being sucked up by the iron remover
  • INQUIRY


Stainless steel rollers have been replaced by carbon steel rollers in many fields. When conveyors are transporting powder or block non-magnetic materials, in order to remove the miscellaneous iron in the object, it is necessary to install iron removers. Because ordinary rollers are Steel, in order to prevent the idler from being sucked up by the iron remover, a non-magnetic material idler must be used. Since the supporting roller is located at the head of the conveying line, the impact force is large. Comprehensively considering the strength of the idler and other factors, the use of 304 stainless steel pipe instead of ordinary carbon steel pipe to make idler will not only increase the wear resistance of the idler but also extend the service life of the idler.


Stainless conveyor  idler

Standard: GB, ISO, CEMA, DIN, JIS, etc..

Production capacity: as usual 5000 pieces/ week, but urgent order is acceptable

Certificate: ISO, SGS,

Details for stainless conveyor idler feature:

1.Roller idlers Dia 60mm-159mm, length 190-2000mm, which are used in the corrosion environment such as marine site, chemical industry, acid and alkaline  environment, humid and wet environment etc

2.Tube: S/S304

3.Shaft: S/S304

5.Bearing: Single & Double Row Deep Groove Ball Bearing 2RZ&2Z with C3 clearance.

6.Seals: Grease retaining inner seal with Multi-stage Labyrinth and Retention Cap with Outboard Rubbing Flinger Seal.

7. Lubrication: Grease is Lithium soap type grease with Rust Inhibitors.

8. Welding: Mixed gas shielded arc welding end

9. Painting: ordinary painting, hot galvanized painting, electric static spraying painting, baked painting

Besides we can manufacture the rollers and idlers according to the buyers’ requirements.
